Horizontal Bolt Type Flour Mill
MODERN TECHNIQUE DERIVED FROM ANCIENT TECHNOLOGY
Horizontal Bolt Type Flour Mill is best suitable for Grinding products like Pulses, Cereals, Spices, Herbs, Dry Chemicals, Minerals, Coffee, Sugar, etc.
Models & Specifications
Key Features
| Mill Size | Motor Required | Pulley Size | Bearing Size | Shaft Size | Output/Hour | R.P.M. | Hopper Capacity |
|---|---|---|---|---|---|---|---|
16" | 5 hp
Three Phase | 10"2B | 6206-09 | 45 mm | 60 - 70 kgs. | 432 | 20 kgs. |
18" | 7.5 hp
Three Phase | 10"2B | 6206-09 | 45 mm | 80 - 90 kgs. | 432 | 20 kgs. |
20" | 10 hp
Three Phase | 10"2B | 6206-09 | 45 mm | 100 - 105 kgs. | 480 | 25 kgs. |
24" | 12.5 hp
Three Phase | 12"2B | 6206-09 | 45 mm | 130 - 150 kgs. | 480 | 40 kgs. |
27" | 15 hp
Three Phase | 12"2B | 6206-09 | 45 mm | 190 - 200 kgs. | 480 | 40 kgs. |
30" | 20 hp
Three Phase | 12"2B | 6206-09 | 45 mm | 250 - 270 kgs. | 480 | 40 kgs. |
Similar Products

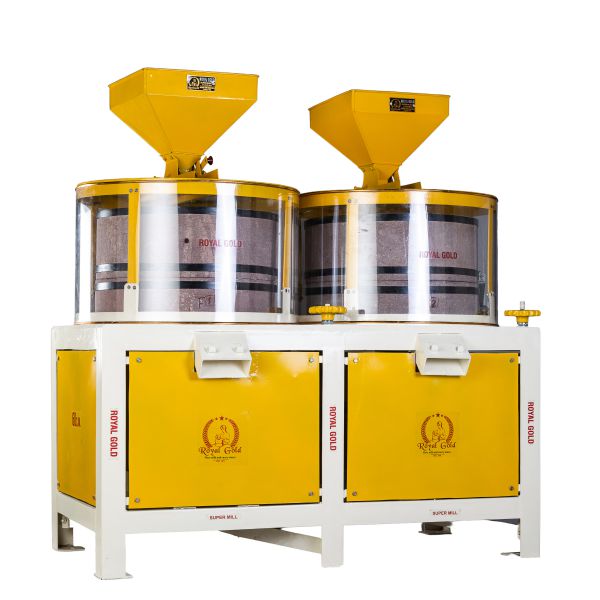

Royal Gold Super Mill

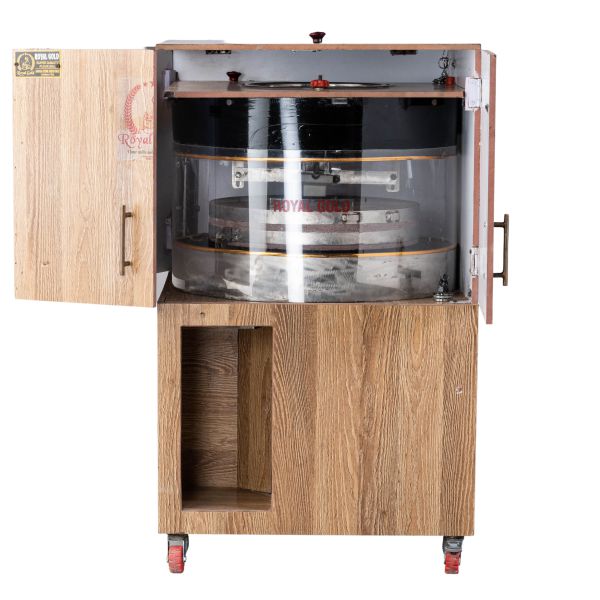

Domestic Cabinet Type Flour Mill
Organic Flour Mill

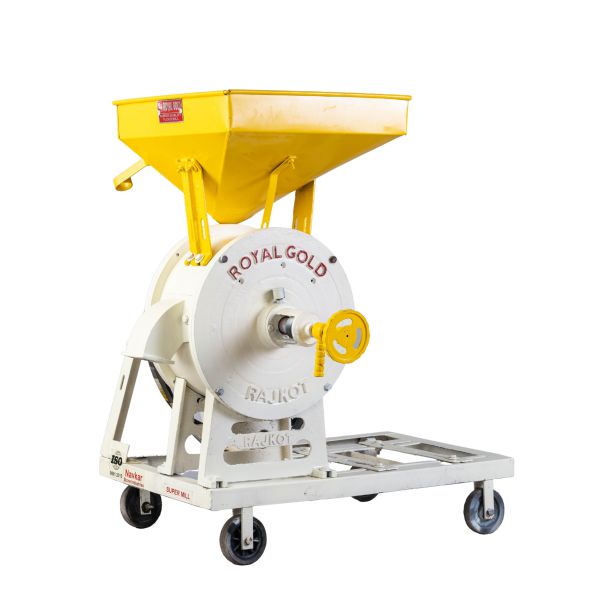

Vertical Rajkot Type Flour Mill
